- Pipe Size: 1/4 NPT
- Nominal Airflow: 30 CFM
- Filtration Rating: .01 Micron
- Maximum Pressure: 100 PSI
- Temperature Range: 32-120 F
- Contains 1 Filter
- Made in USA

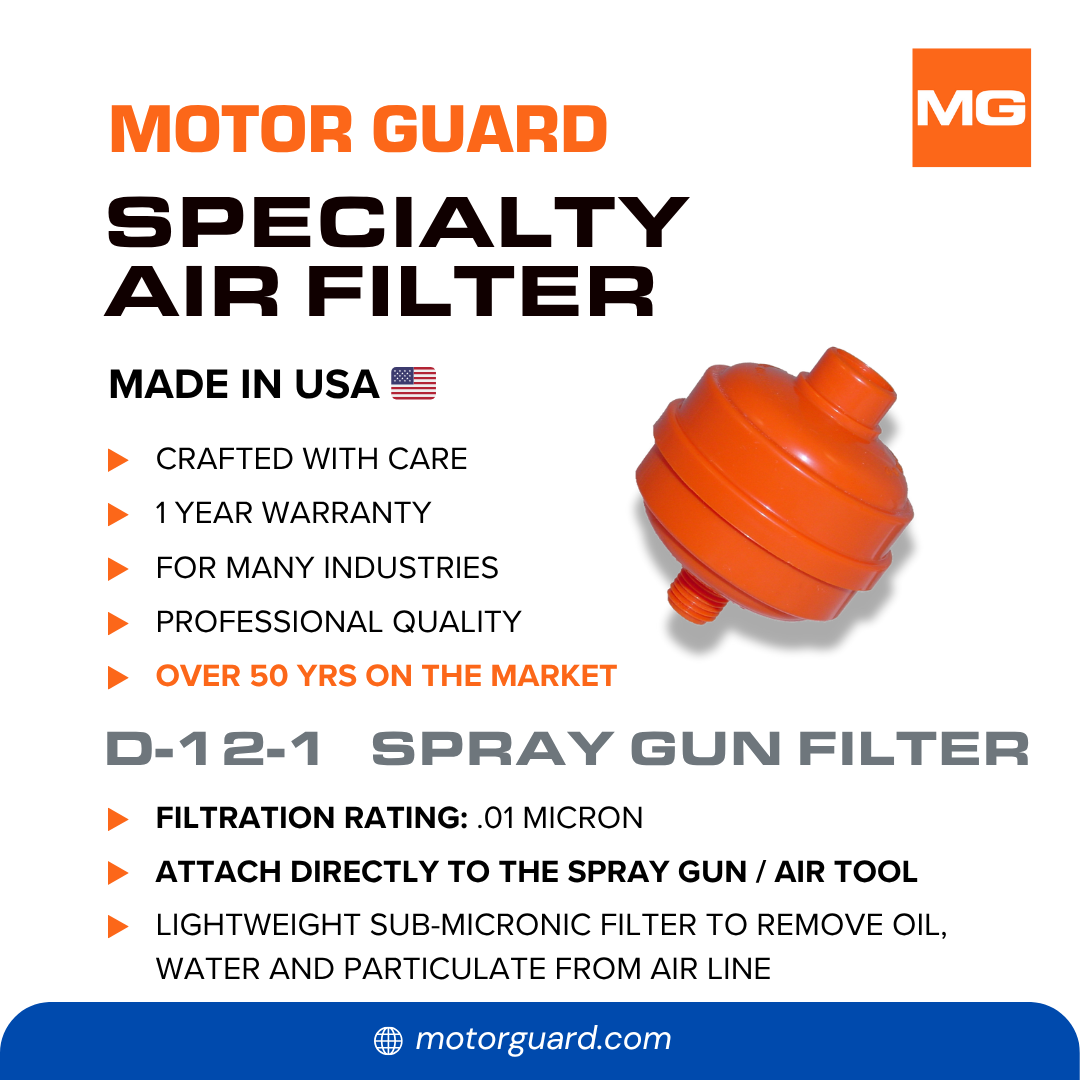

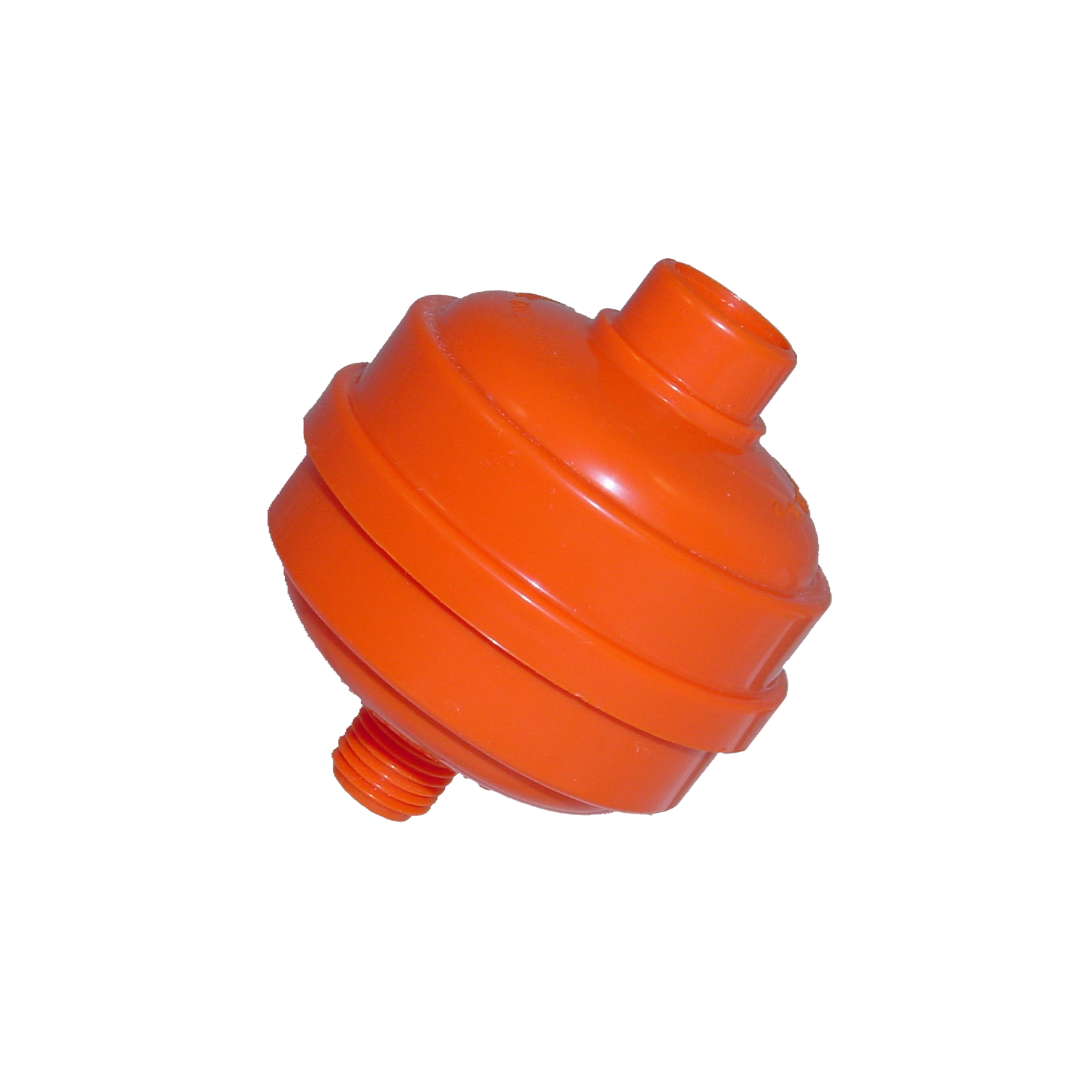

D-12-1 Disposable Spray Gun Filter
Description

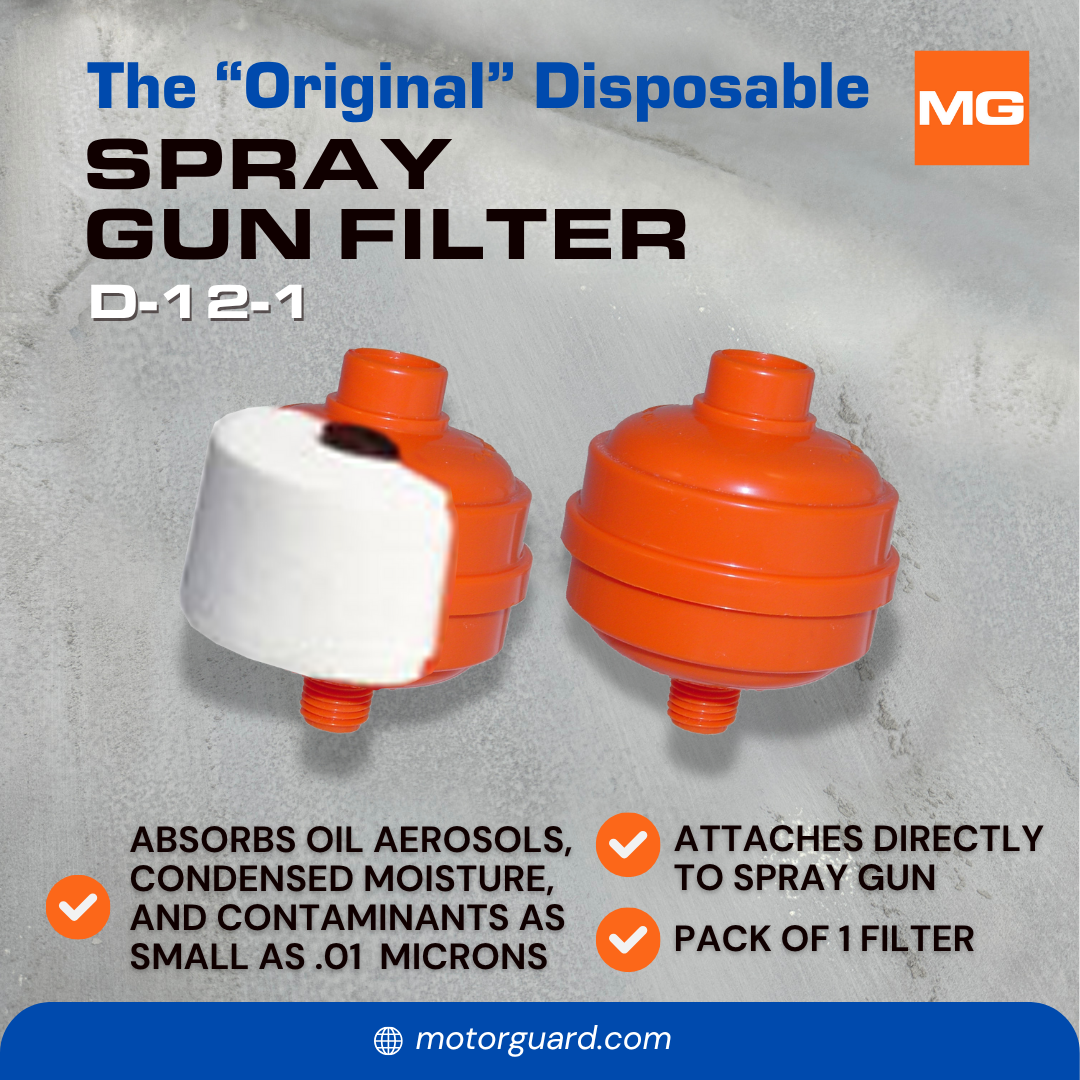

This is the filter that ends painting failures by absorbing oil aerosols, condensed moisture, and contaminants as small as .01 microns. It attaches directly to the air inlet of the spray gun, and as air is passed between the patented spiral wound element’s compressed layers, particles as small as .01 micron are entrapped. This incredible filtration is accomplished at a true 30 CFM to the spray gun. All this, while at the same time providing maximum efficiency, with a minimal pressure drop, at the optimum flow rate. Eliminate painting failures with the D-12 by removing wet, dirty, damaging air. Holds more moisture with a lower pressure drop at the highest flow rate available. Designed to remove the smallest contaminant particle, oil-aerosol or drop of moisture to supply Clean, Dry, Oil-Free air to the spray gun. Users of the D-12 report reduced paint defects, resulting in increased Paint Department productivity with the ultimate final finishes.
Additional information
Weight | 0.12 lbs |
---|---|

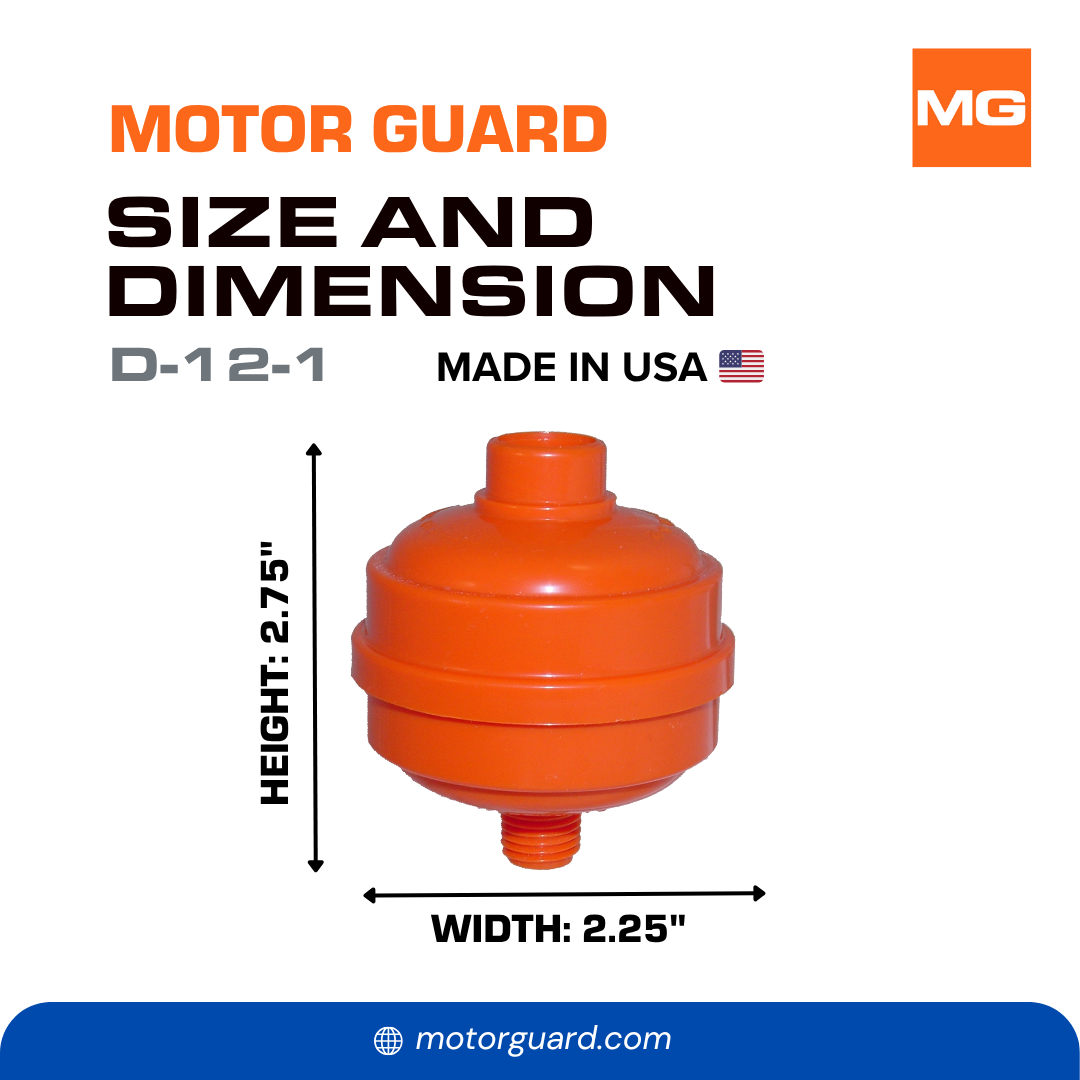

Dimensions | 2.25 × 2.25 × 2.75 in |
SKU | 00105 |
Item Package Quantity | 1 |
Part Number | D-12-1 |
Additional information
Part Number | D-12-1 |
---|---|
Item Package Quantity | 1 |
SKU | 00105 |
