Pipe Size: 3/8 NPT
Nominal Airflow: 60 CFM
Filtration Rating: .01 Micron
Maximum Pressure: 125 PSI
Temperature Range: 32-175 F

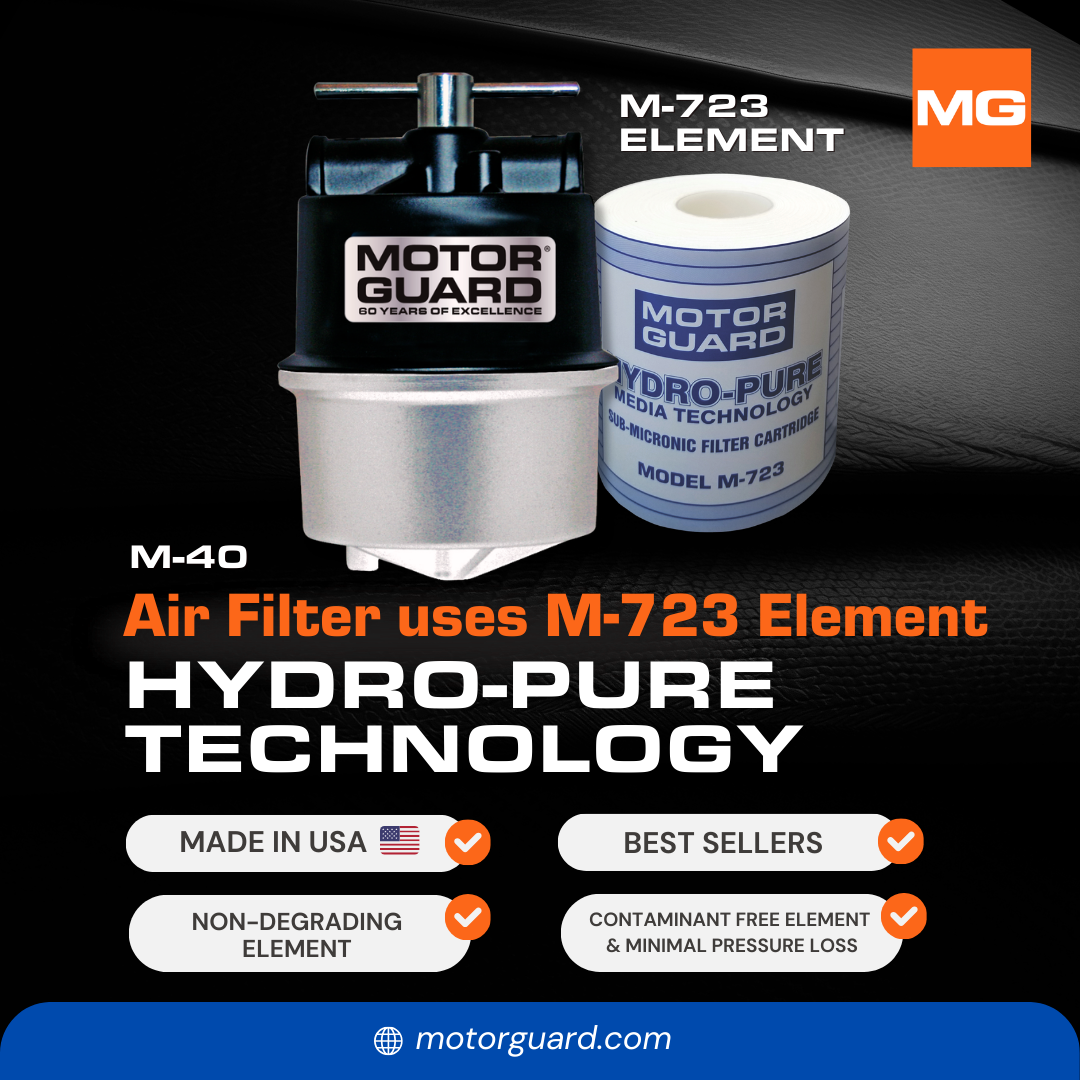

Replacement Element: M-723
3/8 NPT Inline Pipe Connections
Made in USA

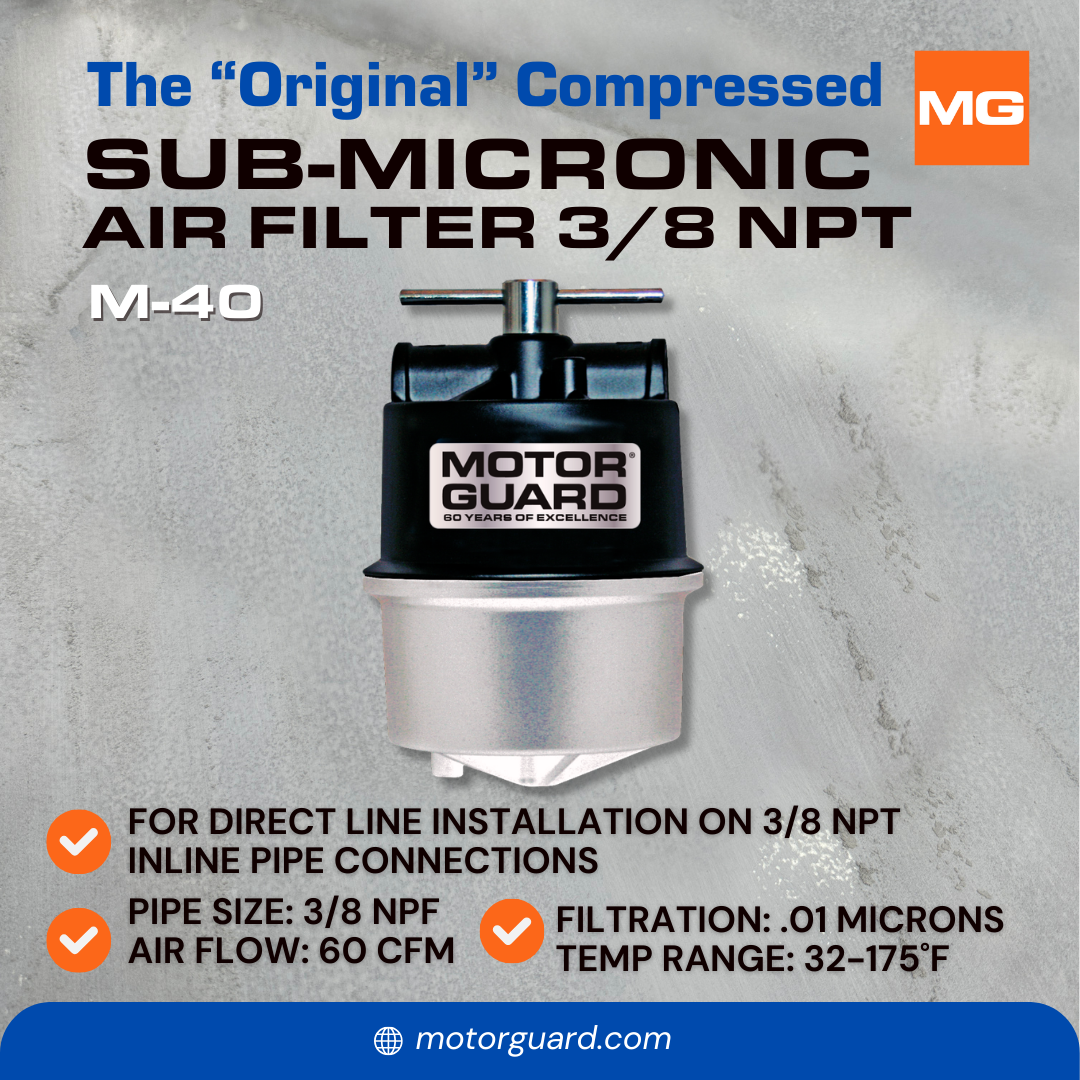

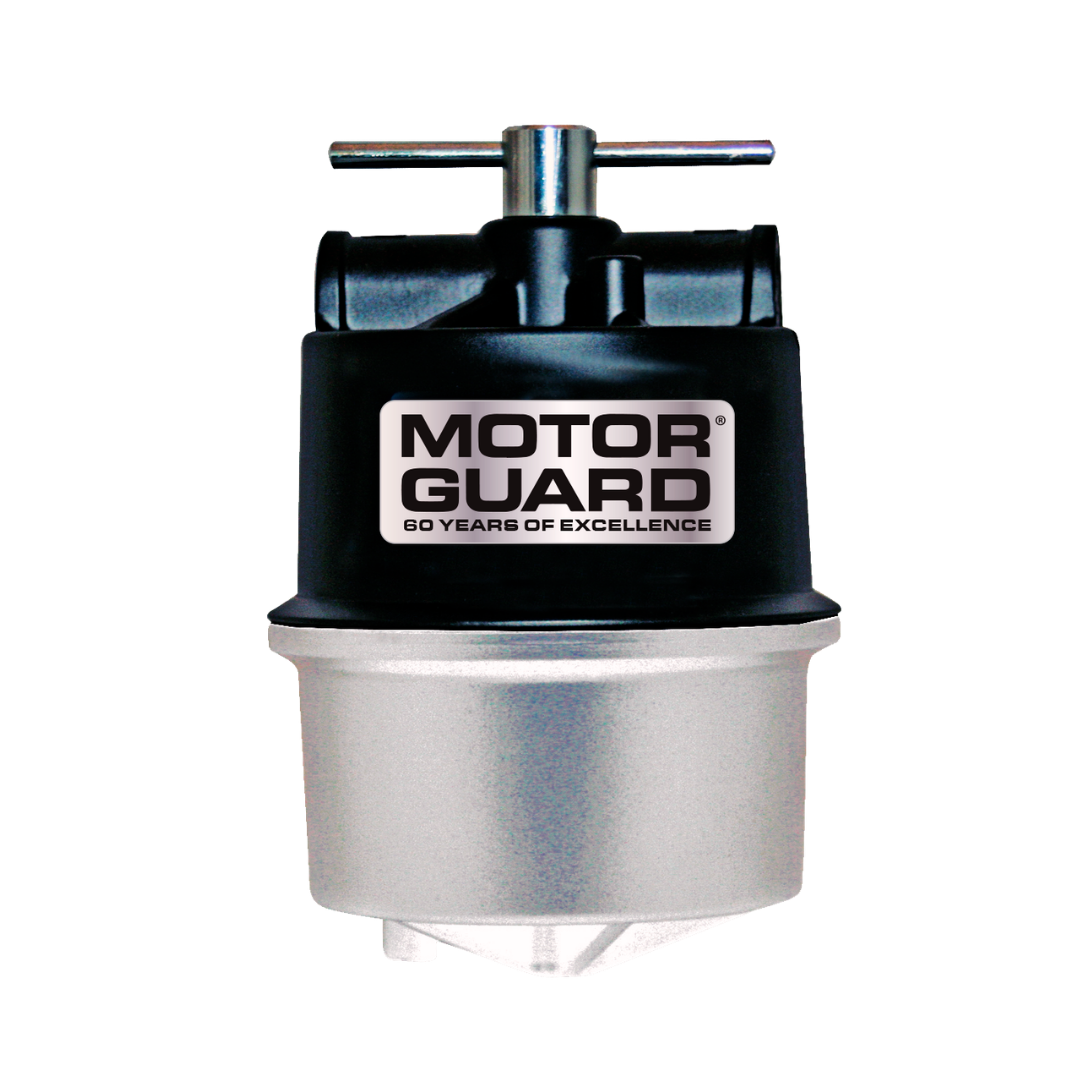

M-40 Submicronic Compressed Air Filter 3/8 NPT
Description
Motor Guard Sub-Micronic Compressed Air Filters are the ultimate defense against damaging, dirty air. Designed for installation at to the point of use, these filters remove particulates, condensed moisture and oil aerosols down to an incredible .01 microns in size. No other filter on the market provides this level of protection combined with a low pressure drop and ease of use. Produced from a propreitaty blend of hydrophilic fibers, the wound element in the Motor Guard filter traps contaminants and absorbs large quantities of moisture and oil. The M-40 model is a mid-flow model for direct inline installation on 3/8 inch or larger lines. Mount one at every station to protect tools and other critical applications.
Additional information
| Weight | 3.45 lbs |
|---|---|

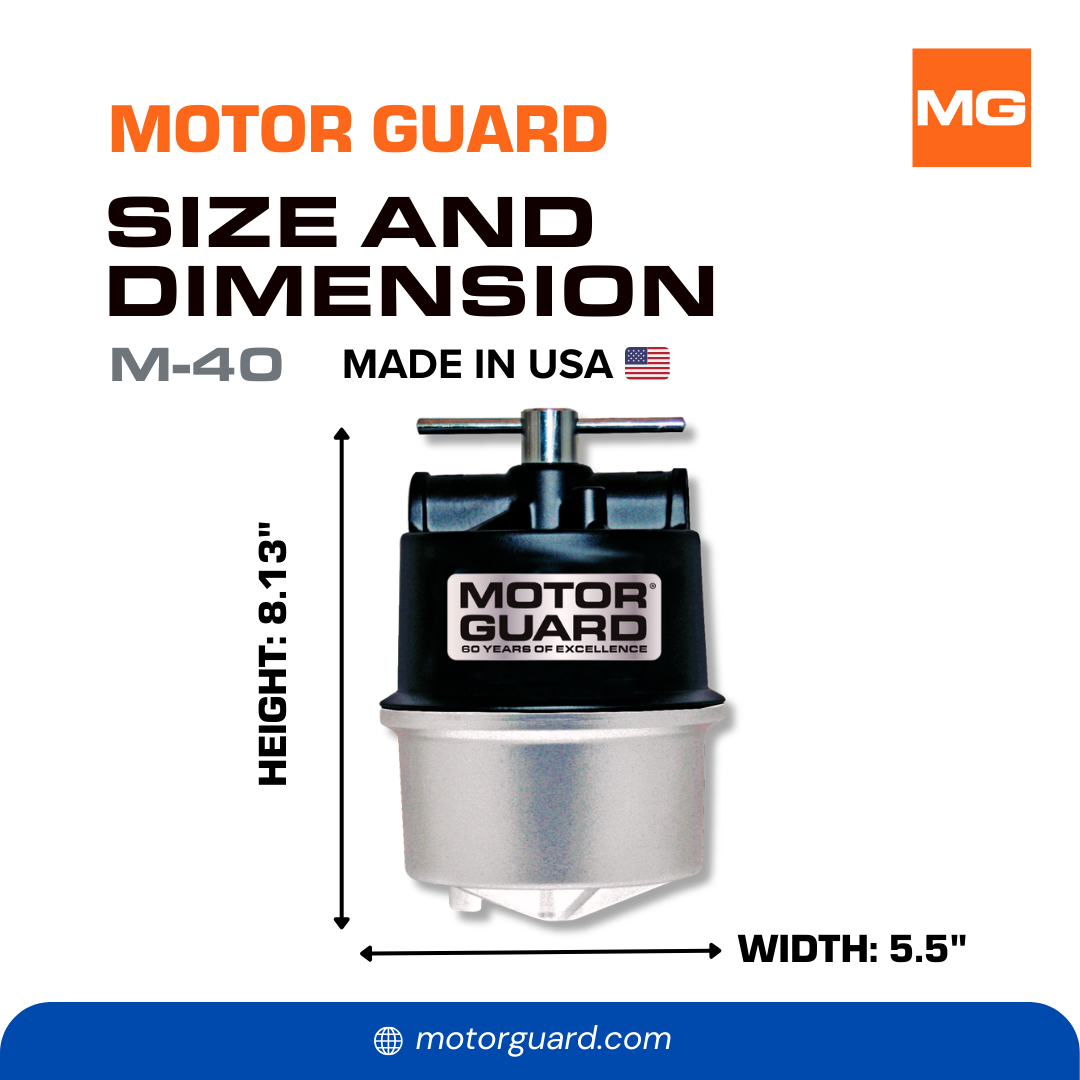

| Dimensions | 5.5 × 5.5 × 8.125 in |
| SKU | 00248 |
| Item Package Quantity | 1 |
| Part Number | M-40 |
Additional information
| Part Number | M-40 |
|---|---|
| Item Package Quantity | 1 |
| SKU | 00248 |
