- Use the M-C100 Final Filter to remove:
- Hydrocarbon Oil Vapor – from air compressor blow-by
- Silicone Vapor – which spells death to today’s finishes
- Organic Vapor – off all types
- Desiccant Dust – from upstream dryers
- Volatile Organic Compounds (V.O.C.’s)
- Port Size: 1/2 NPT
- Nominal Airflow: 100 CFM
- Removal Rating: <.01 PPM
- Maximum Pressure: 125 PSI
- Temperature Range: 32-175 F

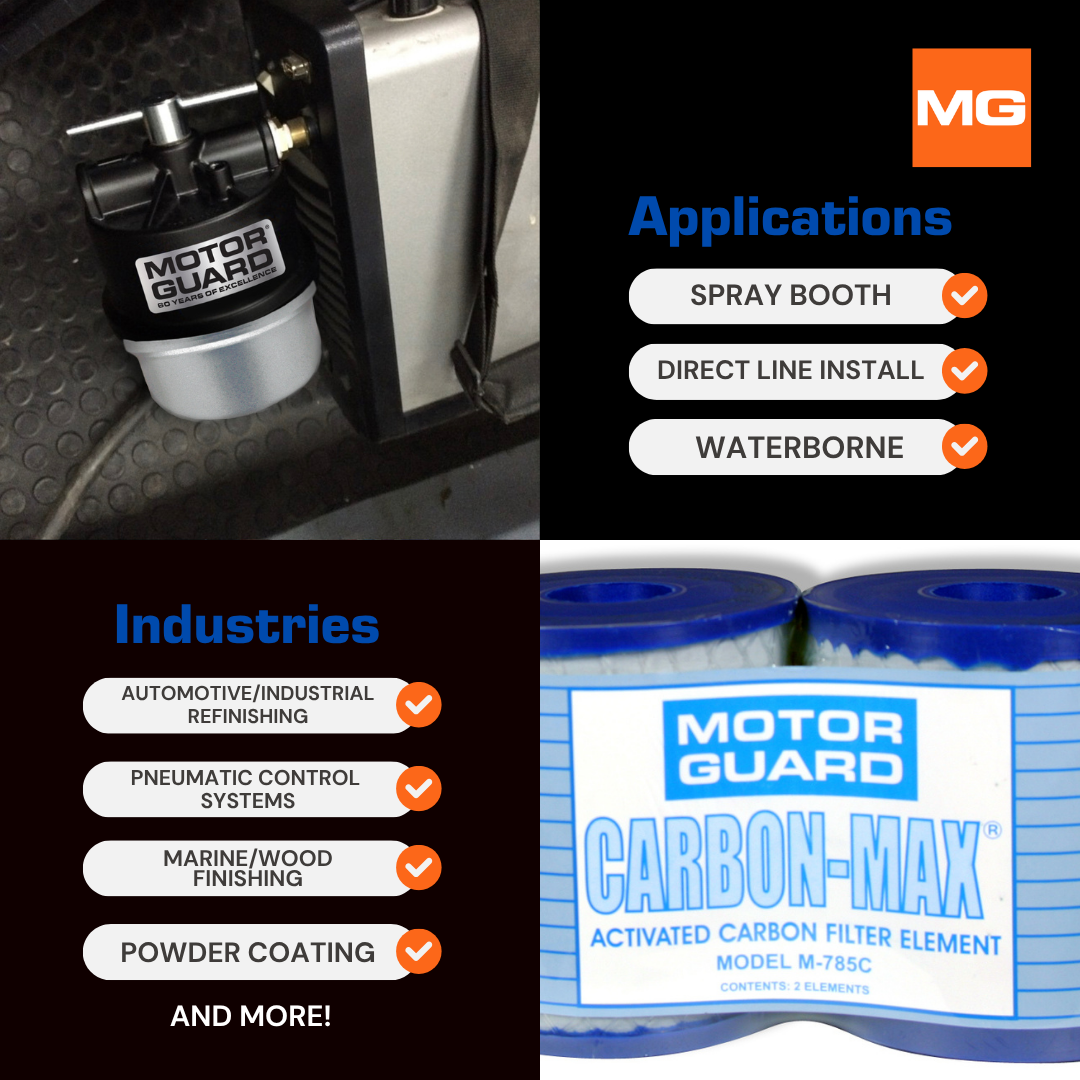

- Replacement Element: M-785C
- Made in USA

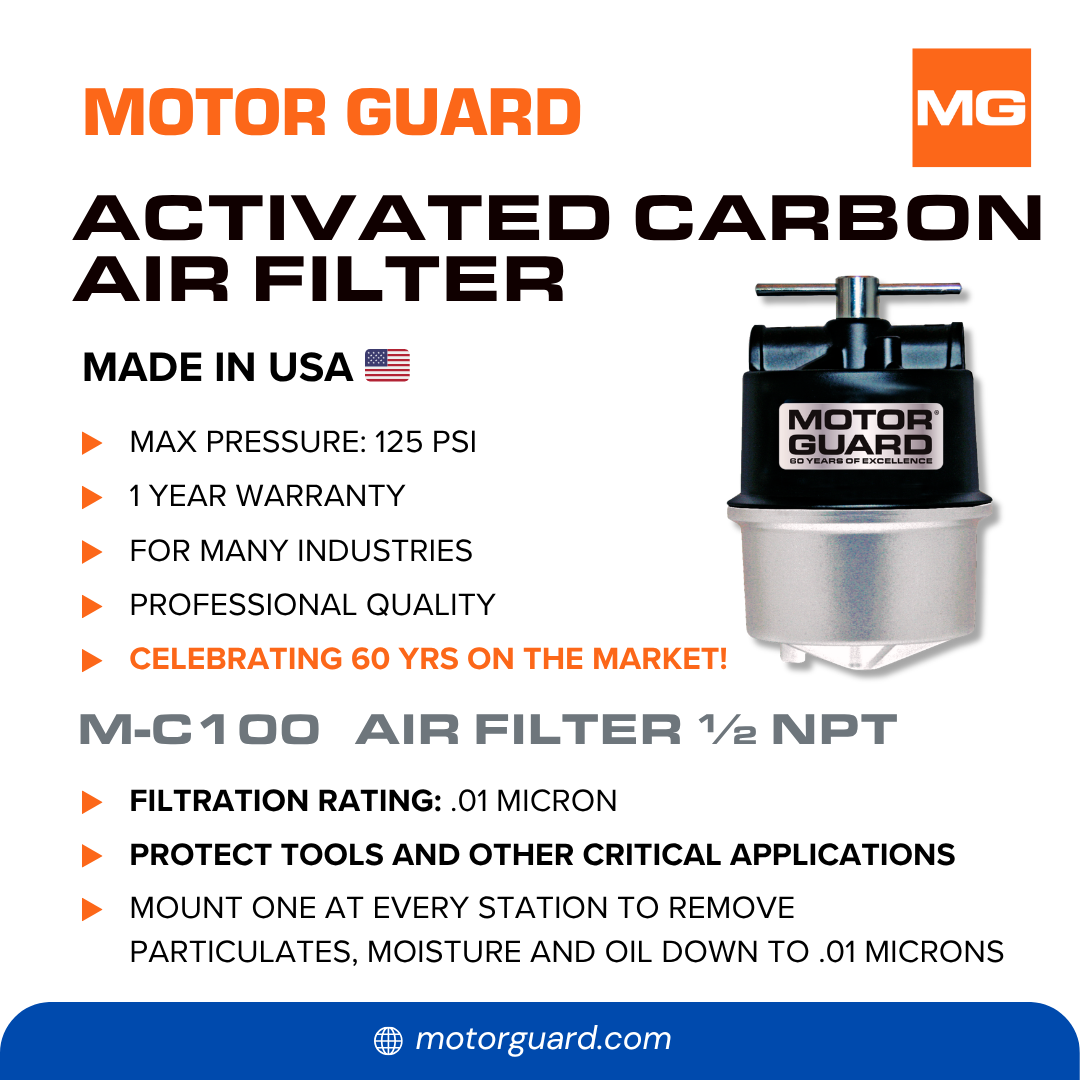

M-C100 Activated Carbon Compressed Air Filter 1/2NPT
$107.00
In stock
In stock
Description
Today’s premium and waterborne refinishing systems demand compressed air that is cleaner than ever. Conventional filters and dryers remove particulates, water vapor and condensed water and oil. Vaporized oil in the compressed air stream passes right through conventional filters and dryers where it causes finishing flaws. The Motor Guard M-C100 Filter removes oil vapor from compressed air. Motor Guard’s exclusive Carbon-Max Cartridge contains activated carbon media that traps oil and other molecules in microscopic pores through the adsorption process. The filter delivers air to the spray gun that is virtually free from oil vapor (<.01 ppm by weight). The cartridge also contains a 1 micron final filter outer layer. The addition of the M-C100 as the final stage in a new or existing spray booth filtration system ensures defect-free jobs with today’s waterborne and other premium refinishing systems.
Additional information
| Weight | 3.3 lbs |
|---|---|

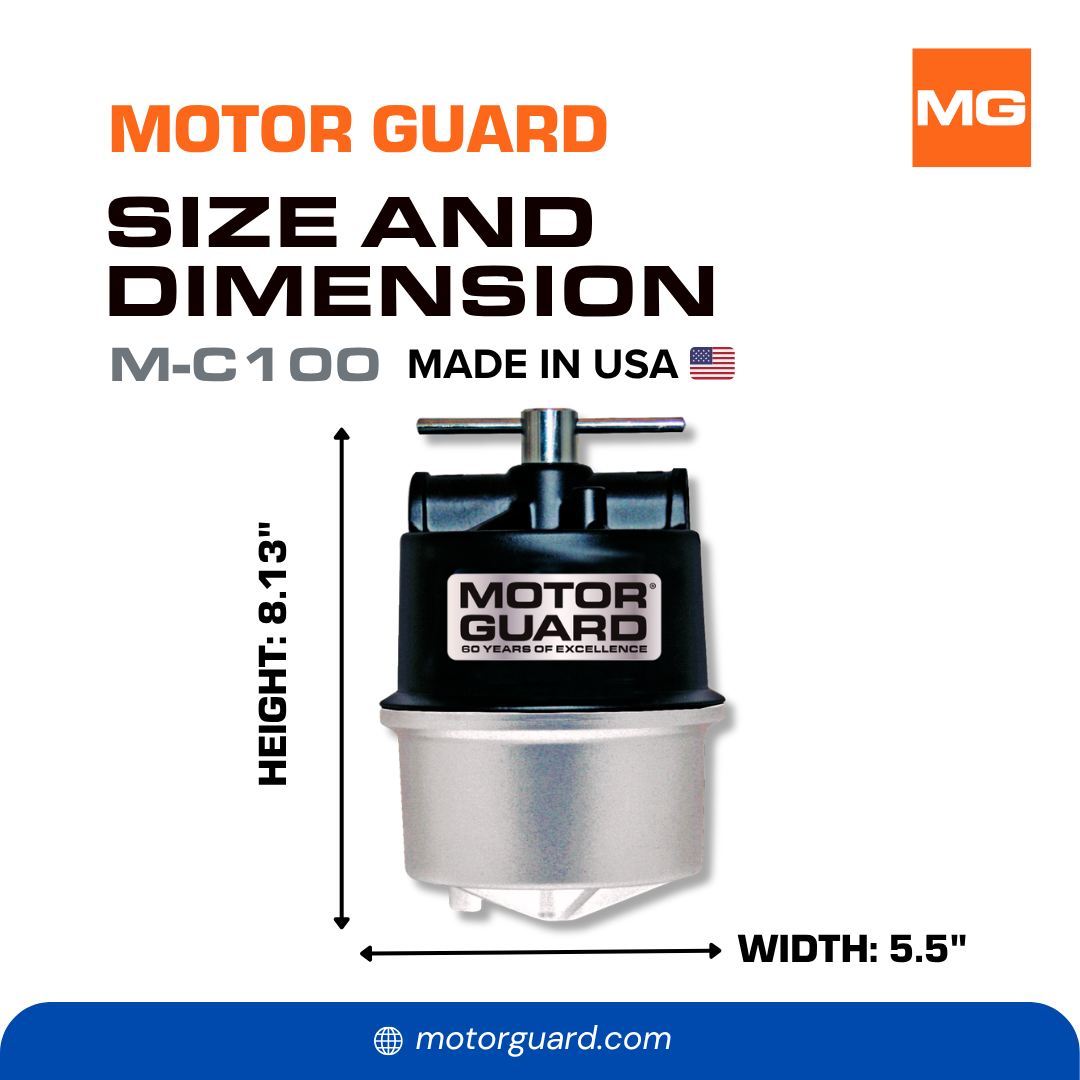

| Dimensions | 5.5 × 5.5 × 8.125 in |
| Part Number | M-C100 |
| Item Package Quantity | 1 |
| SKU | 00252 |
Additional information
| Part Number | M-C100 |
|---|---|
| Item Package Quantity | 1 |
| SKU | 00252 |
